Functions:
Frequency Range: 144-148MHz, 420-450MHz (TX) | 144-148, 136-174MHz, 400-480MHz (RX) | 65-108MHz (FM RX Only)
Dual-Band Display, Dual Freq. Display, Dual-Standby
Different LED Background colors
Output Power: 5 /1Watts
128 Channels 50 CTCSS and 104 DCS
Built-in VOX Function
1750Hz Brust Tone
FM Radio (65.0MHz-108.0MHz)
LED Flashlight
Large LCD Display
Hight /Low RF Power Switchable
25KHz/12.5KHz Switchable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Auto Lock
Monitor Channel
Channel Step: 2.5/5/6.25/10/12.5/25KHz

Specification:
Frequency Range: 144-148MHz, 420-450MHz (TX) | 144-148, 136-174MHz, 400-480MHz (RX) | 65-108MHz (FM RX Only)
Channel No.: 128
Frequency Stability: ±2.5ppm
Antenna: High gain Dual-Band Antenna
Antenna Impedance: 50Ω
Operating Voltage: DC 7.4V
Mode of operation: Simple or semi-duplex
Dimension（W x H x D）: 100 x 52 x 32 mm
Weight: 500g （including battery, antenna）

Transmitter:
Output power: 5W / 1W (Max 5W)
Modulation Mode: 16kΦF3E / 11kΦF3E
Maximum deviation: ＜5kHz(Wide) / ＜2.5kHz(Narrow)
Spurious Radiation: ＜7μW
Adjacent Ch. power: ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics: 6dB
Current: ≤1.6A(5W)
CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity: 8-12mv
Intermediation distortion: ＜10

Package Content:

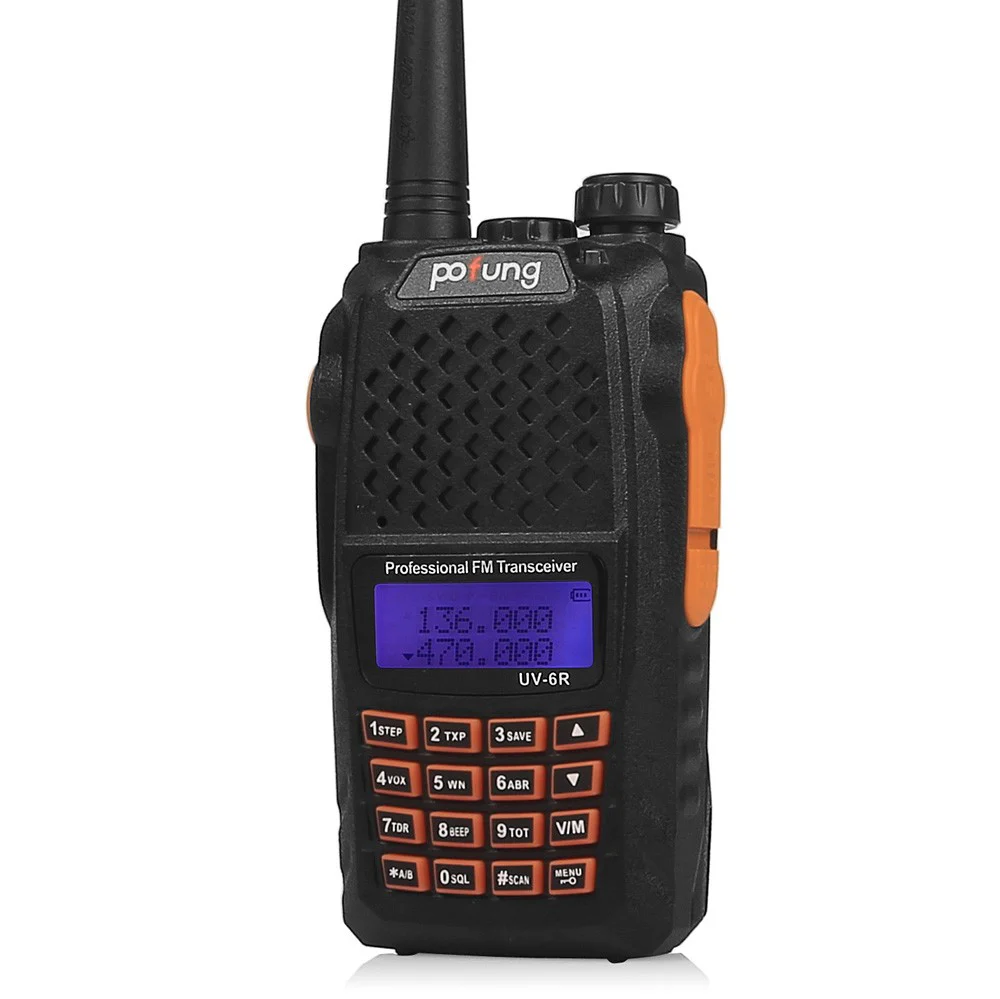

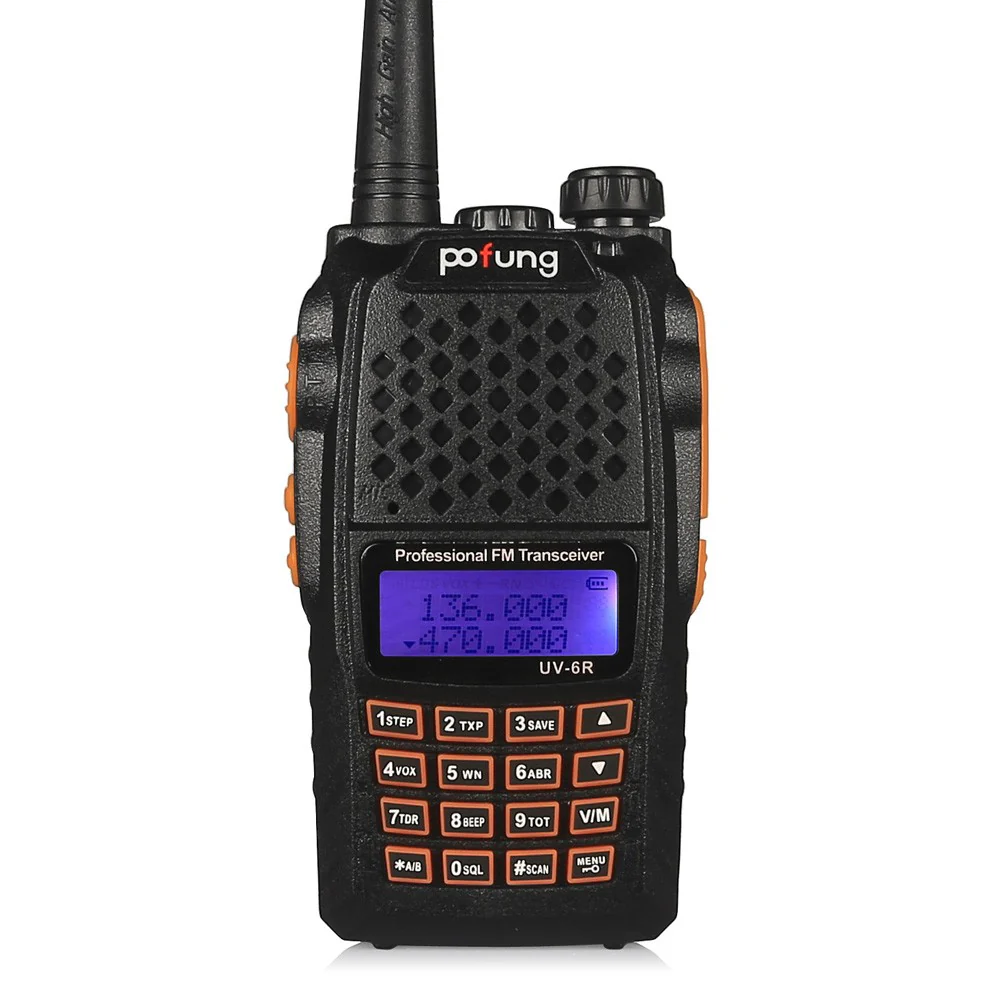

1 x Baofeng UV-6R Ham Radio
1 x 7.4V 1800mAh Li-ion Battery Pack
1 x Antenna 136-174/400-519.995Mhz
1 x Earphone Mic/Headset
1 x Belt Clip
1 x Hand Strap
1 x ENG / GER / FRA Manual
1 x Desktop Charger ( 100V ~ 240V )
